逻辑回归

5. 逻辑回归原理

6. 逻辑回归代码实现

7. 逻辑回归实验分析

回归是如何变成分类的呢？
之前在线性回归问题中，得到了具体的回归值，如果此时任务要做一个二分类该怎么办呢？

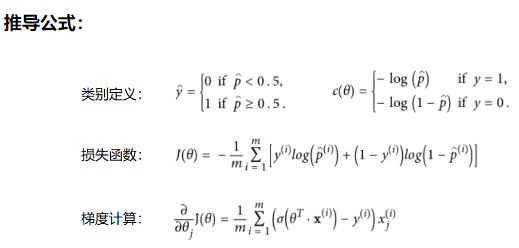

如果可以将连续的数值转换成对应的区间，这样就可以完成分类任务了，逻辑回归中借助sigmoid函数完成了数值映射，通过概率值比较来完成分类任务

import numpy as np
import os
%matplotlib inline
import matplotlib
import matplotlib.pyplot as plt
plt.rcParams['axes.labelsize'] = 14
plt.rcParams['xtick.labelsize'] = 12
plt.rcParams['ytick.labelsize'] = 12
import warnings
warnings.filterwarnings('ignore')
np.random.seed(42)

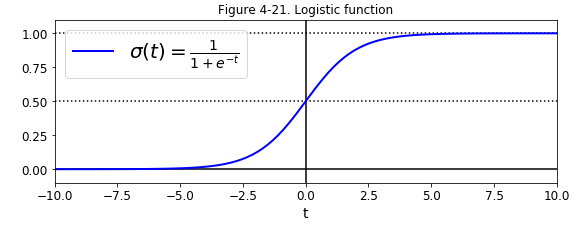

t = np.linspace(-10, 10, 100)
sig = 1 / (1 + np.exp(-t))
plt.figure(figsize=(9, 3))
plt.plot([-10, 10], [0, 0], "k-")
plt.plot([-10, 10], [0.5, 0.5], "k:")
plt.plot([-10, 10], [1, 1], "k:")
plt.plot([0, 0], [-1.1, 1.1], "k-")
plt.plot(t, sig, "b-", linewidth=2, label=r"$\sigma(t) = \frac{1}{1 + e^{-t}}$")
plt.xlabel("t")
plt.legend(loc="upper left", fontsize=20)
plt.axis([-10, 10, -0.1, 1.1])
plt.title('Figure 4-21. Logistic function')
plt.show()

数据集

from sklearn import datasets
iris = datasets.load_iris()
list(iris.keys())
['data', 'target', 'target_names', 'DESCR', 'feature_names', 'filename']

X = iris['data'][:,3:]
y = (iris['target'] == 2).astype(np.int)


LogisticRegression()
log_res.fit(X,y)
from sklearn.linear_model import LogisticRegression
log_res = LogisticRegression()

log_res.fit(X,y)
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='warn',
          n_jobs=None, penalty='l2', random_state=None, solver='warn',
          tol=0.0001, verbose=0, warm_start=False)

X_new = np.linspace(0,3,1000).reshape(-1,1)
y_proba = log_res.predict_proba(X_new)
y_proba
array([[0.98554411, 0.01445589],

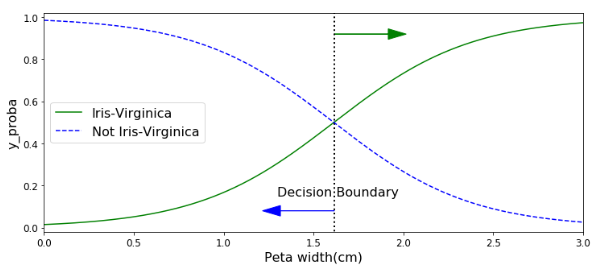

 # 随着输入特征数值的变化，结果概率值也会随之变化
       plt.figure(figsize=(12,5))
decision_boundary = X_new[y_proba[:,1]>=0.5][0]
plt.plot([decision_boundary,decision_boundary],[-1,2],'k:',linewidth = 2)
plt.plot(X_new,y_proba[:,1],'g-',label = 'Iris-Virginica')
plt.plot(X_new,y_proba[:,0],'b--',label = 'Not Iris-Virginica')
plt.arrow(decision_boundary,0.08,-0.3,0,head_width = 0.05,head_length=0.1,fc='b',ec='b')
plt.arrow(decision_boundary,0.92,0.3,0,head_width = 0.05,head_length=0.1,fc='g',ec='g')
plt.text(decision_boundary+0.02,0.15,'Decision Boundary',fontsize = 16,color = 'k',ha='center')
plt.xlabel('Peta width(cm)',fontsize = 16)
plt.ylabel('y_proba',fontsize = 16)
plt.axis([0,3,-0.02,1.02])
plt.legend(loc = 'center left',fontsize = 16)

X = iris['data'][:,(2,3)]
y = (iris['target']==2).astype(np.int)

from sklearn.linear_model import LogisticRegression
log_res = LogisticRegression(C = 10000)
log_res.fit(X,y)
LogisticRegression(C=10000, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='warn',
          n_jobs=None, penalty='l2', random_state=None, solver='warn',
          tol=0.0001, verbose=0, warm_start=False)

X[:,0].min(),X[:,0].max()
(1.0, 6.9)
X[:,1].min(),X[:,1].max()
(0.1, 2.5)

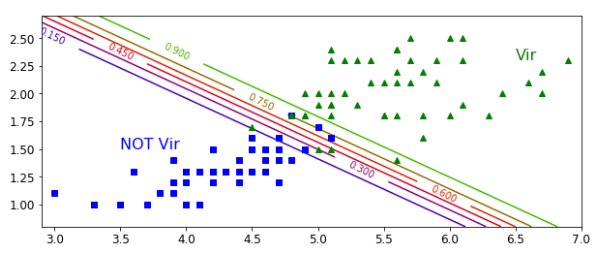

决策边界的绘制

构建坐标数据，合理的范围当中，根据实际训练时输入数据来决定
整合坐标点，得到所有测试输入数据坐标点
预测，得到所有点的概率值
绘制等高线，完成决策边界

x0,x1 = np.meshgrid(np.linspace(1,2,2).reshape(-1,1),np.linspace(10,20,3).reshape(-1,1))


x0
array([[1., 2.],
       [1., 2.],
       [1., 2.]])

array([[10., 10.],
       [15., 15.],
       [20., 20.]])

np.c_[x0.ravel(),x1.ravel()]
array([[ 1., 10.],
       [ 2., 10.],
       [ 1., 15.],
       [ 2., 15.],
       [ 1., 20.],
       [ 2., 20.]])
x0,x1 = np.meshgrid(np.linspace(2.9,7,500).reshape(-1,1),np.linspace(0.8,2.7,200).reshape(-1,1))
X_new = np.c_[x0.ravel(),x1.ravel()]
X_new
y_proba = log_res.predict_proba(X_new)

plt.figure(figsize=(10,4))
plt.plot(X[y==0,0],X[y==0,1],'bs')
plt.plot(X[y==1,0],X[y==1,1],'g^')

zz = y_proba[:,1].reshape(x0.shape)
contour = plt.contour(x0,x1,zz,cmap=plt.cm.brg)
plt.clabel(contour,inline = 1)
plt.axis([2.9,7,0.8,2.7])
plt.text(3.5,1.5,'NOT Vir',fontsize = 16,color = 'b')
plt.text(6.5,2.3,'Vir',fontsize = 16,color = 'g')

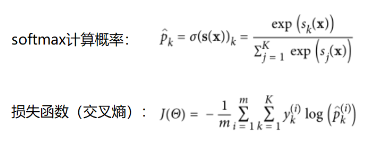

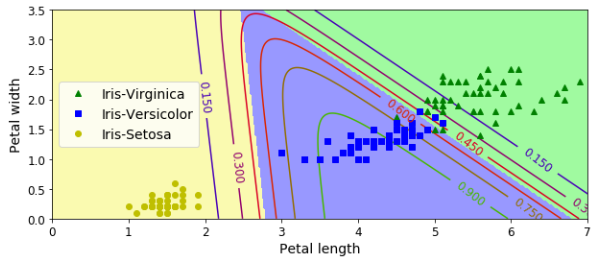

多类别分类

X = iris['data'][:,(2,3)]
y = iris['target']


softmax_reg = LogisticRegression(multi_class = 'multinomial',solver='lbfgs')
softmax_reg.fit(X,y)
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
          intercept_scaling=1, max_iter=100, multi_class='multinomial',
          n_jobs=None, penalty='l2', random_state=None, solver='lbfgs',
          tol=0.0001, verbose=0, warm_start=False)
softmax_reg.predict([[5,2]])
softmax_reg.predict_proba([[5,2]])

x0, x1 = np.meshgrid(
        np.linspace(0, 8, 500).reshape(-1, 1),
        np.linspace(0, 3.5, 200).reshape(-1, 1),
    )
X_new = np.c_[x0.ravel(), x1.ravel()]


y_proba = softmax_reg.predict_proba(X_new)
y_predict = softmax_reg.predict(X_new)

zz1 = y_proba[:, 1].reshape(x0.shape)
zz = y_predict.reshape(x0.shape)

plt.figure(figsize=(10, 4))
plt.plot(X[y==2, 0], X[y==2, 1], "g^", label="Iris-Virginica")
plt.plot(X[y==1, 0], X[y==1, 1], "bs", label="Iris-Versicolor")
plt.plot(X[y==0, 0], X[y==0, 1], "yo", label="Iris-Setosa")

from matplotlib.colors import ListedColormap
custom_cmap = ListedColormap(['#fafab0','#9898ff','#a0faa0'])

plt.contourf(x0, x1, zz, cmap=custom_cmap)
contour = plt.contour(x0, x1, zz1, cmap=plt.cm.brg)
plt.clabel(contour, inline=1, fontsize=12)
plt.xlabel("Petal length", fontsize=14)
plt.ylabel("Petal width", fontsize=14)
plt.legend(loc="center left", fontsize=14)
plt.axis([0, 7, 0, 3.5])
plt.show()
